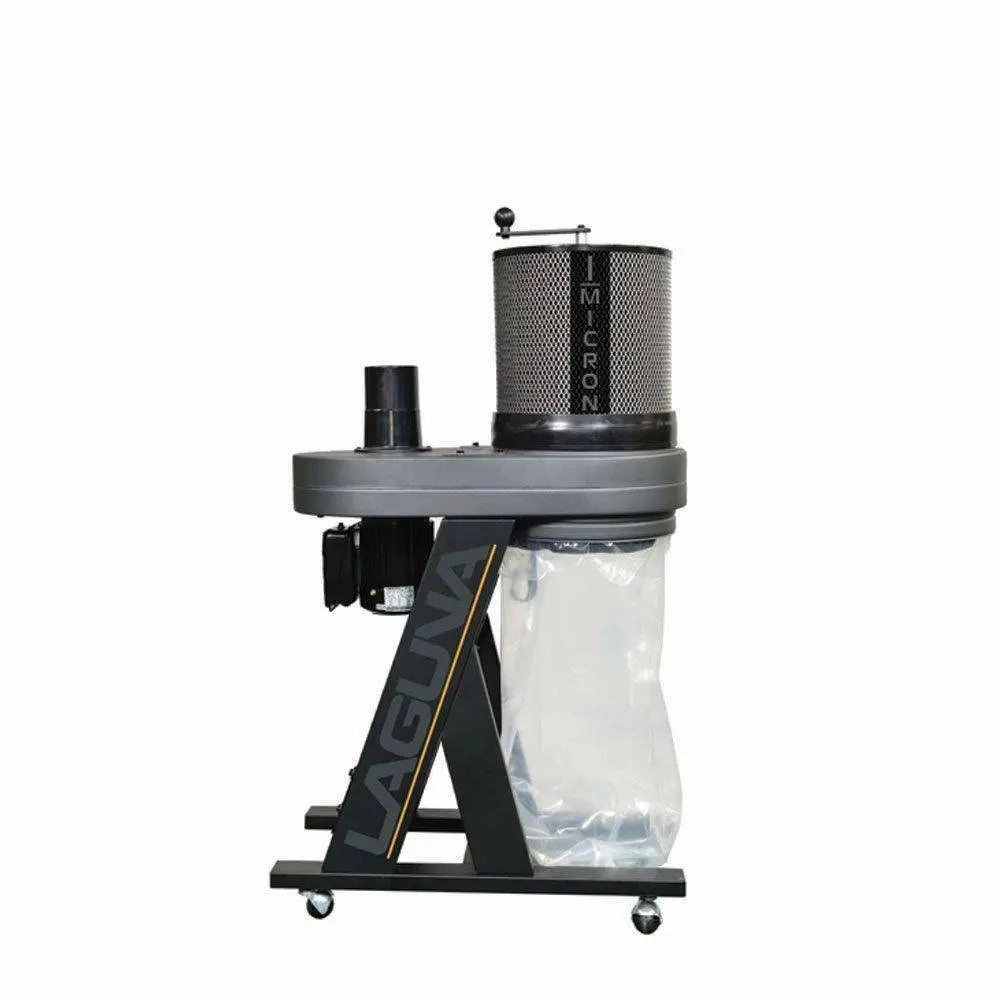

MDCBF1110C1M, Laguna B|Flux 1hp 110v Canister Dust Collector
The most beautiful single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards.
The b|flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.
Features:
- Motor: 1HP
- Phase: 1
- Voltage: 110v
- Amps: 8.4 Amps
- Recommended Breaker: 15 Amps
- Hertz: 60
Specifications:
- Plug: Yes
- RPM: 3450
- Switch Type: Motor Mounted Direct Switch
- Hand Held Remote: None
- Shop Setting CFM: 550
- Inlet CFM: 650
- Max Static Pressure (Inches of Water): 4.86″
- Impeller/Fan Size: 9″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balanced To: ISO 1940
- Inlet Diameters: 4″ x 1 Port
- Drum Collection Bag (Dia. x L): Plastic Bag (350 x 980mm)
- Canister Filter Type: 1 Micron
- Filtration Efficiency: 0.2 – 2 Micron at 99.97%
- MERV Rating: 12
- Canister Diameter: 360mm (14.2″)
- Canister Length: 300mm (11.8″)
- Filter Surface Area: 1.6m² / 17.2ft²
- Canister Cleaning: Manual Handle Crank 360°
- Wheels: 2″ Ball Caster
- CSA Approved: Yes
- Decibel Reading: 76 dB (At 9.8ft)
- Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″ | 736 x 376 x 1280mm
- Shipping Weight: 77lbs
- Shipping Dimensions (L x W x H): 32in x 20in x 25in
